12V,2.7W,125LM,CRI≥80,3000K Natural White Puck Light
- Dimension(D)68x(TH)12mm
- Input voltage12v
- Wattage2.7w
- Light source6 pcs SMD
- Lumen output125-140lm
- CRI≥80
- Color temperature2700k-6500k
- IP20
- MaterialPC
- Finishpainting(white/black/silver)chrome(gold/silver)
- 1 light with1.8m lead and end with a mini connector and mounting accessories
- Packagewhite box or custom
- Warranty(Years)2
- CertificationCE, ETL, UL, GS, REACH, RoHS, SAA, VDE

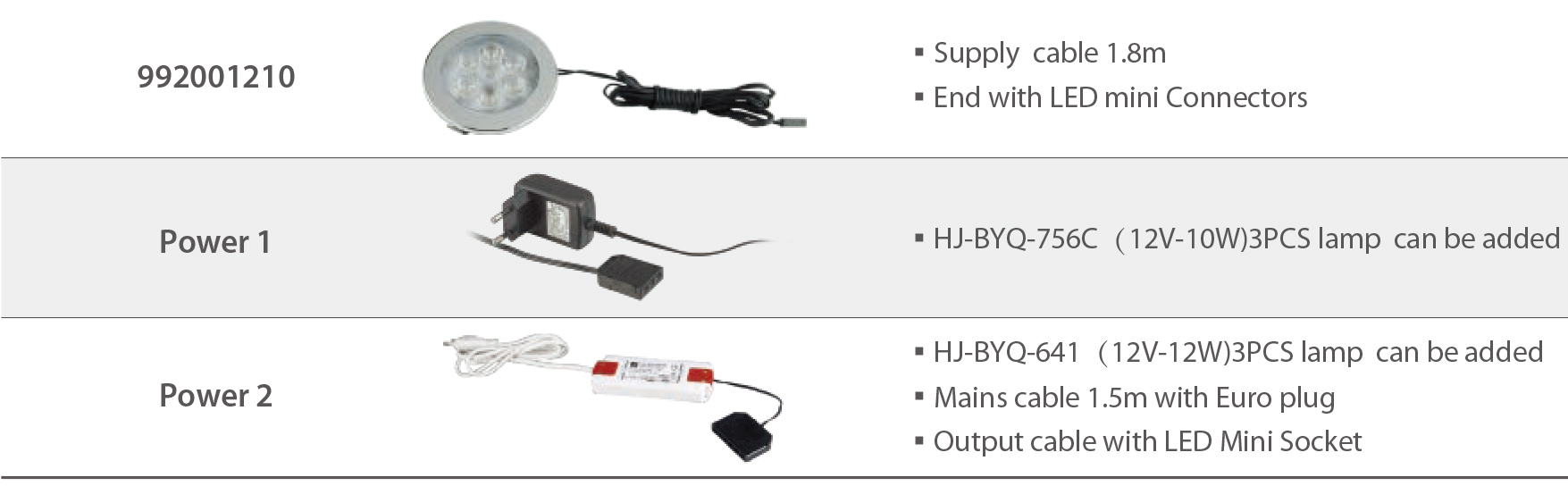

- Driving/Power supply optionalHJ-BYQ-641(12V-12W)





















wholesale drawer light supplier&manufacturer,china oem drawer light factory
Drawer lighting is also a kind of kitchen lighting. It is a kind of lamp that is placed in the drawer to provide lighting for the drawer. Drawer lights are lights installed in our kitchen cabinets. Installing drawer lights can facilitate us to pick up some commonly used items in the cabinets.
Do I need to keep wires for the cabinet drawer lights?
This needs to be decided according to the cabinet drawer lamp style you choose to install. If the cabinet light style you choose is a light strip, then you can choose to match with an inductive switch, which can be used to light up immediately, and there is no need to laboriously reserve a wire control. Of course, if the cabinet drawer lamp you choose is a general concealed lamp, laminate lamp, etc., you need to make a wiring plan for the cabinet drawer lamp before the entire cabinet is installed, so that you can install the cabinet lamp. Hiding the circuit of the lamp will not affect the decoration style of the whole home.
Because the cabinet drawer is used for storage, when installing the cabinet drawer lamp wire control, you need to pay special attention to the safety of electricity. In addition to avoiding electric shock, you must also pay attention to avoiding the problem of fire caused by electricity. After all, any cabinet lamp Installation is to achieve a good decorative effect, not to leave hidden dangers to home life.
To facilitate finding things. For some kitchens with poor light and deep inside drawers, the presence of light strips can help to illuminate every corner clearly, and there will be no sanitary corners when cleaning, and it also makes cabinet drawers more layered.
How to install the light strip inside the drawer?
Embedded installation
In the early stage, woodworkers need to communicate with the master when opening the drawer, prepare the card slot in advance, and hide the light strip in the card slot in the later stage. The location of the card slot is usually at the top of the drawer, which is not only beautiful, but also won't feel when you open the drawer.
Snap-in installation/adhesive installation
If you want to install a light strip in the drawer later, you can choose a matching light trough to fix it on the top of the drawer, and the light strip only needs to be attached to the light trough.
FAQ
1.May I have a sample order ?
Yes, sample order is available.
2. What about the lead time?
The lead time of sample is 5-7 days, the delivery time of order is 7-45 days.
3. Do you have any MOQ limit for order?
Yes, the MOQ limit is according to different product.
4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is optional.
5. How to proceed an order?
Firstly let us know your requirements or application.
